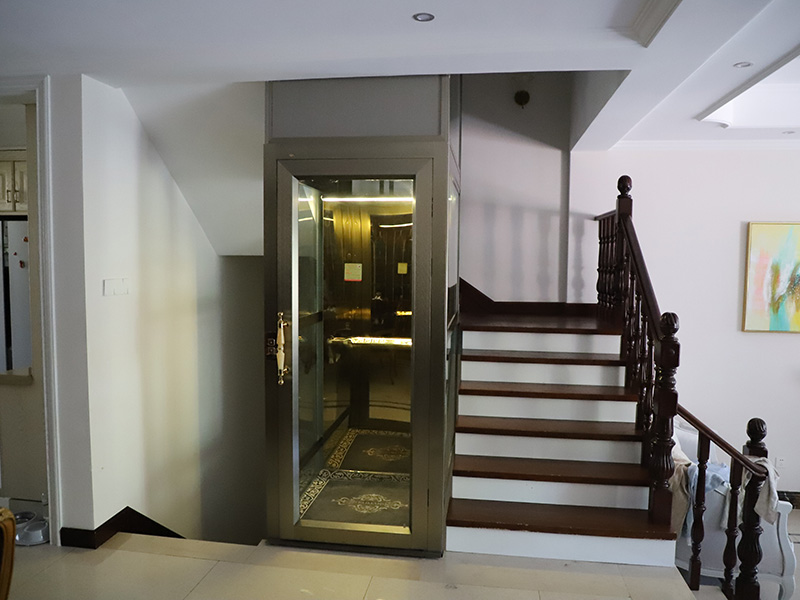

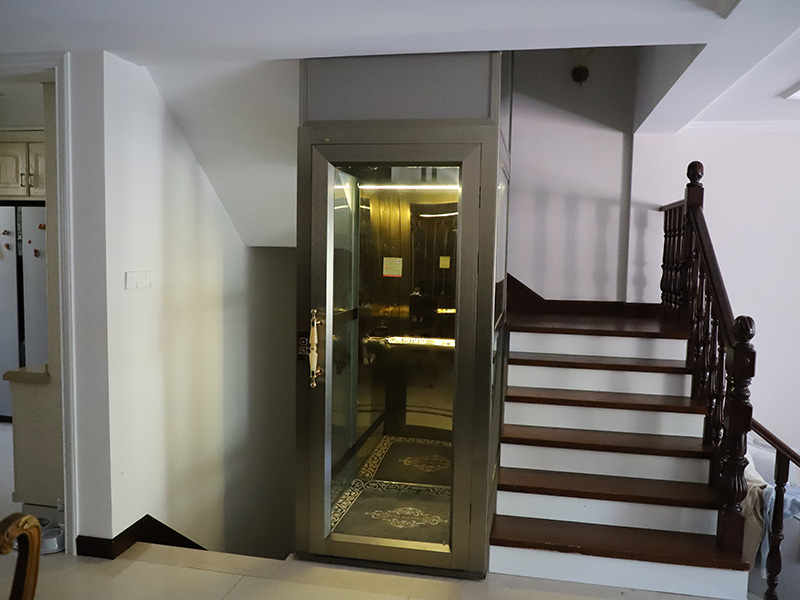

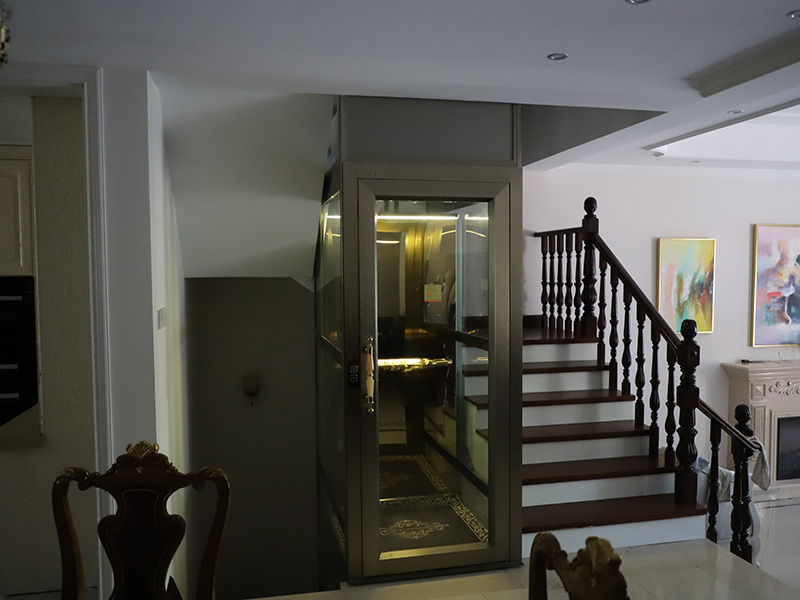

The steel belt platform elevator belongs to the new product of the household elevator, and the design concept is combined with the screw elevator. It is called the steel belt platform because the traction replaces the traditional steel wire rope with the steel belt to reduce the occupied area. The car does not have the car wall and the car roof as the rear wall protection board, so that the space is fully utilized.
The Odsen steel belt platform ladder uses the industry's more advanced gearless traction technology, which is safe, stable and quiet. The product style is simple and can be combined with various decoration styles. It is an excellent choice for your home travel.
For fast-paced modern people
The use of elevators has also begun to prevail.
Its simplicity, comfort and warmth
After a busy day
Can experience the comfort of home
Driving principle:
Traction drive, using permanent magnet synchronous traction machine
The traction machine is located at the top of the hoistway, and the traction wire rope/steel belt is connected to the car and the counterweight by the traction sheave. A guide wheel is placed on the traction machine so that the car and the counterweight do not collide in normal operation in the hoistway. The rotation of the motor drives the traction sheave, and the drive wire/steel belt drives the car to operate relative to the counterweight.
Specifications
model |
OTP3000 |
Rated load / number of people |
320kg/4 |
speed |
0.25m/s |
Well size (mm) |
1300x1300 |
Platform size (mm) |
900x1220 |
Opening method |
Open the door manually |
Door opening size (mm) |
800x2000 |
Top level height (mm) |
≥2800 |
Pit depth (mm) |
≥170 (no bottom pit optional slope / retrofit step) |
Well material |
Aluminum alloy frame, glass (standard), aluminum plate (optional) |
Maximum lifting height |
12M |
Most stops |
5/5/5 |
Well appearance |
White / Champagne Brush / Red Walnut (standard) BMW Amber (optional) |
Opening structure |
Through door / same direction opening / adjacent door |
Standard power / power: |
220V / 50HZ*380V/50HZ |
[personalized customization]
![]() |
![]() |
![]() |
![]() |
|||
OTSE-L01 | OTSE-L03 | OTSE-L04 | OTSE-L06 |
![]() |
![]() |
![]() |
![]() |
|||
OTSE-Z001 | OTSE-Z002 | OTSE-Z003 | OTSE-Z005 |
![]() |
![]() |
![]() |
![]() |
|||
OTSE-LS101 | OTSE-LS105 | OTSE-902 | OTSE-H06 |
