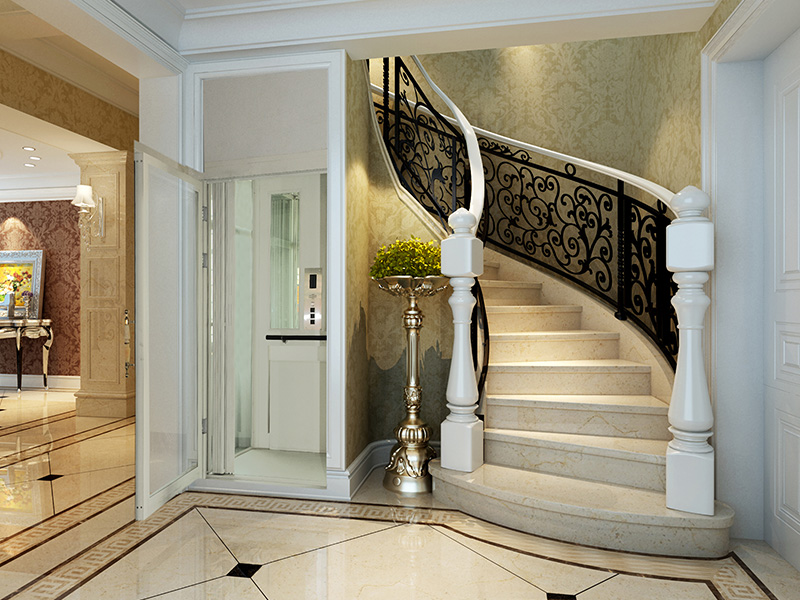

The OTSE backpack-type steel belt elevator can still have a car in a small space, with an integrated ceiling and a well-designed human-machine interface, and a personalized appearance, giving you a unique visual experience. With a unique steel belt mainframe and composite steel belt, the operation is efficient, convenient, comfortable and safe, and you can create a smart home elevator that belongs to you.
The traction machine is located at the top of the hoistway, and the traction wire rope/steel belt is connected to the car and the counterweight by the traction sheave. A guide wheel is placed on the traction machine so that the car and the counterweight do not collide in normal operation in the hoistway. The rotation of the motor drives the traction sheave, and the drive wire/steel belt drives the car to operate relative to the counterweight.
Rated load / number of people
400kg / 5
Well size (mm)
Car size (mm)
Door opening method (mm)
Manual opening / automatic opening
Door opening size (mm)
Top level height (mm)
Pit depth (mm)
≥400 (without bottom pit optional slope / retrofit step)
Aluminum alloy frame, glass (standard), aluminum plate (optional)
Maximum lifting height
White / Champagne Brush / Red Walnut (standard)
BMW Amber (optional)
Through door / same direction opening / adjacent door
Standard power / power:
220V / 50HZ*380V/50HZ
