Steel Belt Backpack Structure OTB3000

Steel Belt Backpack Structure OTB3000

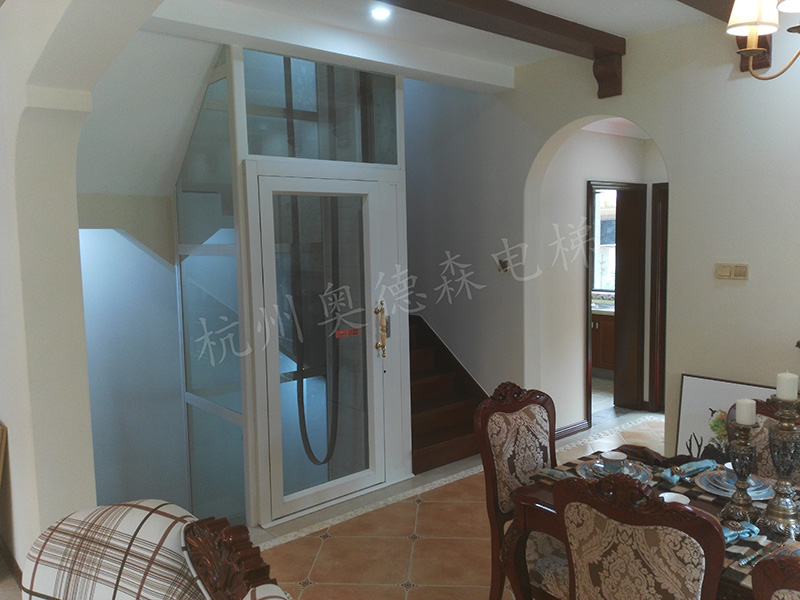

The OTSE backpack-type steel belt elevator can still have a car in a small space, with an integrated ceiling and a well-designed human-machine interface, and a personalized appearance, giving you a unique visual experience. With a unique steel belt mainframe and composite steel belt, the operation is efficient, convenient, comfortable and safe, and you can create a smart home elevator that belongs to you.

  • Operated with steel belt, no noise, fast speed and high comfort;
  • Self-contained aluminum alloy sightseeing shaft with car lift, beautiful appearance
  • No need for a separate machine room, the top floor height ≥ 2800mm, the bottom pit ≥ 300mm can be installed;
  • Can do three sides to open the door
  • Very easy to install
  • Save electricity and pollution, reduce energy consumption by 40%, and realize elevator-free maintenance!
  • Easy maintenance and low cost
  • Obtained European CE certification

Product Details

Driving principle:


The traction machine is located at the top of the hoistway, and the traction wire rope/steel belt is connected to the car and the counterweight by the traction sheave. A guide wheel is placed on the traction machine so that the car and the counterweight do not collide in normal operation in the hoistway. The rotation of the motor drives the traction sheave, and the drive wire/steel belt drives the car to operate relative to the counterweight.






Rated load / number of people




Well size (mm)


Car size (mm)


Door opening method (mm)

Manual opening / automatic opening

Door opening size (mm)


Top level height (mm)


Pit depth (mm)

≥400 (without bottom pit optional slope / retrofit step)

Well material

Aluminum alloy frame, glass (standard), aluminum plate (optional)

Maximum lifting height


Most stops


Well appearance

White / Champagne Brush / Red Walnut (standard)

BMW Amber (optional)

Opening structure

Through door / same direction opening / adjacent door

Standard power / power:

220V / 50HZ*380V/50HZ


[personalized customization]


OTSE-D01   OTSE-D02   OTSE-D07   OTSE-D08


OTSE-Z001   OTSE-Z002   OTSE-Z007   OTSE-Z008


OTSE-LS101   OTSE-LS105   OTSE-902   OTSE-H06
